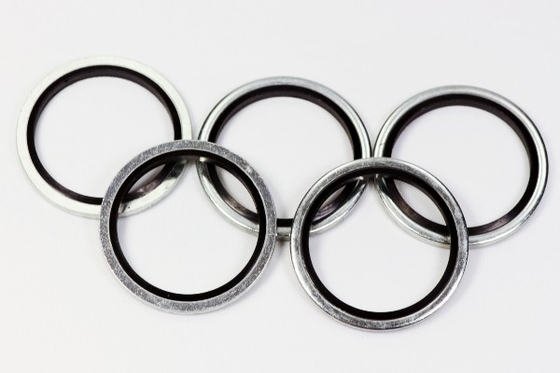

Bonded seals for sealing of threaded pipe joints and plugs
Anti rust treatment of metal ring, rubber ring generally adopts oil resistant nitrile rubber or fluororubber. The combination pad has two sizes of metric system and British system, and the standard JB982-77 specifies the combination form of metal pad and rubber for the combination pad. The combined sealing gasket is used for the sealing of threaded pipe joints and screw plugs. It is generally used with ferrule type pipe joints to plug the oil port. It is mainly used for the end face static sealing at the threaded connection of hydraulic valve pipe joints. It is applicable to the end face static sealing at the connections of British and American Standard British threads and French and German standard metric threads. The combined sealing gasket can be divided into type A and type B according to the structural form; It can be divided into full package and half package according to the different types of rubber.
| Material | Stainless steel + nitrile rubber |
| Article No. | Combination washer M4-M60 |
| Function | The hole is sealed |
| Scope of application | automobile, bearing, pump, valve, chemical pipeline |
| Thickness | 2 (mm) |
| Inner diameter | 4-60 (mm) |
| Outer diameter | 7-75 (mm) |
| Operating temperature | -25 to 100 (℃) |
| working pressure | ≤40 Mpa |
| Medium | Hydraulic oil |
| Other benefits of bonded seals include |
Bonded seals and washers provide reliable sealing at both high and low-pressure points. The strength of bonded seals serves to prevent over-compression and limit deformation of the elastomeric ring. |
|
|
