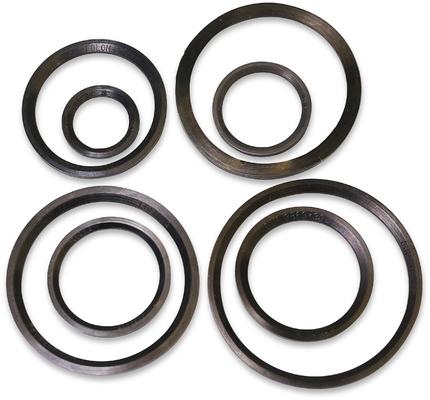

DIN3869 Profile Rings with fixed sealing action
ED ring is one of the many seals for industrial use. It can be used as a special seal for pneumatic and hydraulic joints such as pipe joints, hydraulic plugs, and transition joints, with better sealing effects than traditional O-rings. This elastomer seal can be applied to threaded ports and screw ends as an axial static seal. There is hardly any change with the cross-section under high pressure. Folon.A took the lead in China in initiating the manufacture of ED rings that satisfies the DIN3869 standard, and still maintains its leading position in the market.
| Product Name | NBR ED sealing ring |
| Executive standard | Din3869 |
| Working pressure | 30 (MPa) |
| Working temperature | -30 ℃ - 100℃ |
| Properties |
corrosion resistance, high temperature resistance, wear resistance Scope of
|
| application |
pumps, cylinders, other
|
| Function | shaft seal Section |
| Standard component or not | Standard component |
| Hardness | N85 |
